glass filling machine sieve machine Molecular sieve


  • glass filling machine sieve machine Molecular sieve
  • glass filling machine sieve machine Molecular sieve
  • glass filling machine sieve machine Molecular sieve
  • glass filling machine sieve machine Molecular sieve
  • glass filling machine sieve machine Molecular sieve
  • glass filling machine sieve machine Molecular sieve

glass filling machine sieve machine Molecular sieve

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1sets Bag/Bags
    Delivery Time: 30 Days
    Packaging: wooden box
    Productivity: 10sets/month
    Brand: LIAJING
    Transportation: Ocean
    Place of Origin: China
    Certificate: CE
    Port: Qingdao

Basic Info

Model No.: LJGZ 2020A

Product Description

glass filling machine sieve machine Molecular Sieve




LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits. Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high qu

1. Equipment advantages
Adopt Siemens PLC control system Touch screen interface, easy operation The height can be adjusted according to the size of spacer frame Automatically loading and replenish desiccant Filling time can be adjusted Automatically drilling, filling and sealing - Core parts are imported brands

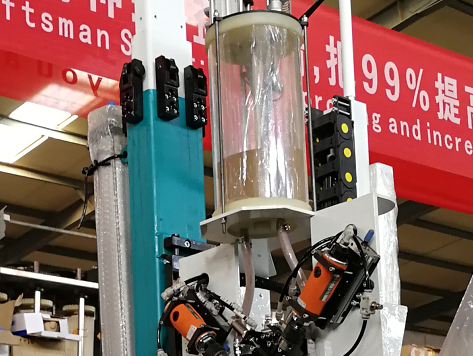

desiccant filling machine

2. Technical data

Aluminum specifications:6A-27A Germany Siemens PLC control system Air source:≥0.65MPa Touching screen interface, simple and visible Total power:AC220V50Hz15KW The height can be adjusted according to the size of spacer frame Molecular sieve diameter needed Automatically loading and replenish desiccant 0.5-0.9mm Filling time can be adjusted Dimension:1600mm1300mm3600mm Automatically drilling, filling and sealing
desiccant filling machine

3. Technical data

Aluminum specifications:6A-27A Germany Siemens PLC control system Air source:≥0.65MPa Touching screen interface, simple and visible Total power:AC220V50Hz15KW The height can be adjusted according to the size of spacer frame Molecular sieve diameter needed Automatically loading and replenish desiccant 0.5-0.9mm Filling time can be adjusted Dimension:1600mm1300mm3600mm Automatically drilling, filling and sealing

Max.aluminum size
2000mm*2000mm
Min.aluminum size
300mm*250mm
Glass thickness
3-15mm
IG thickness
50mm
Glass washing speed
2-10m/min
Glass conveyor speed
45m/min
aluminum specifications
6A-27A
Total power
220v 50hz 1.5kw
JINAN KATION TRADING CO.,LTD

 Kation-Tech founded in 2009, specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!
